Complex-Valued Holographic Radiance Fields¶

People¶


Yicheng Zhan¹	Dong-Ha Shin²	Seung-Hwan Baek²	Kaan Akşit¹

¹University College London, ²Pohang University of Science and Technology (POSTECH)

ACM Transactions on Graphics (Presented at SIGGRAPH 2026)

Resources¶

Manuscript Supplementary Code

Bibtex

@article{zhan2025complexvalued,
author = {Zhan, Yicheng and Shin, Dong-Ha and Baek, Seung-Hwan and Ak\c{s}it, Kaan},
title = {Complex-Valued Holographic Radiance Fields},
year = {2026},
publisher = {Association for Computing Machinery},
address = {New York, NY, USA},
issn = {0730-0301},
journal = {ACM Transactions on Graphics (Presented in SIGGRAPH 2026)},
month = mar,
note = {},
keywords = {Novel View Synthesis, Radiance Fields, 3D Gaussians, Computer-Generated Holography},
location = {Los Angeles, California, USA},
doi = {10.1145/3804450},
url = {https://doi.org/10.1145/3804450},
}

Abstract¶

Modeling wave properties of light is an important milestone for advancing physically-based rendering. We propose complex-valued holographic radiance fields, a method that optimizes scenes without relying on intensity-based intermediaries. By leveraging multi-view images, our method directly optimizes a scene representation using complex-valued Gaussian primitives representing amplitude and phase values aligned with the scene geometry. Our approach eliminates the need for computationally expensive holographic rendering that typically utilizes a single view of a given scene. This accelerates holographic rendering speed by 30x-10,000x while achieving on-par image quality with state-of-the-art holography methods, representing a promising step towards bridging the representation gap between modeling wave properties of light and 3D geometry of scenes.

Motivation¶

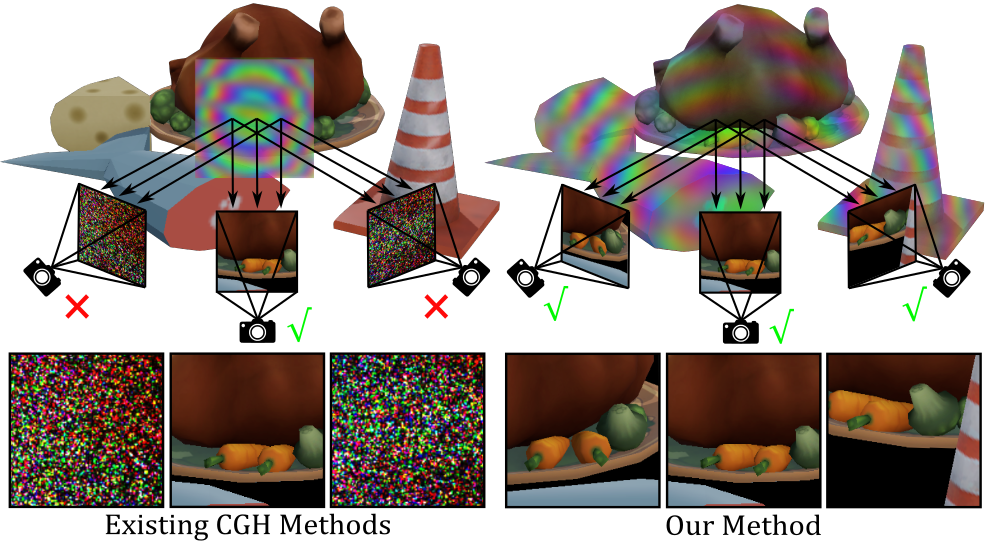

Existing computer-generated holography (CGH) methods treat hologram synthesis as a post-processing step after conventional rendering. Because holograms are computed at the camera plane rather than tied to 3D scene geometry, changing the viewpoint requires expensive recomputation. Without this recomputation, a hologram generated for one view degrades into noise-like artifacts under a new view.

Our method unifies 3D Gaussian Splatting and holographic rendering in a complex-valued representation. Unlike Eulerian CGH methods that recompute the complex field at every spatial location for each viewpoint, we use a Lagrangian formulation in which amplitude and phase are intrinsic scene properties.

Method¶

Overview¶

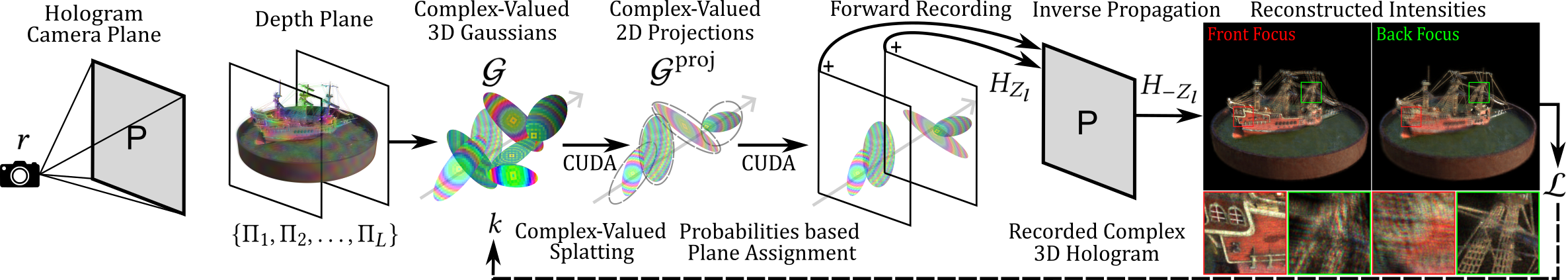

Given a camera pose and a target hologram plane, we partition the scene volume into multiple depth planes. At each depth plane, we render our learnable complex-valued 3D Gaussians into corresponding 2D projections. During projection, we utilize learnable probabilities for our 3D Gaussians that determine whether a Gaussian contributes to a selected depth plane. Once the appropriate 2D projections for each layer are determined, we propagate the complex field from each layer towards the camera to construct the hologram.

Complex-Valued 3D Gaussians¶

In standard 3D Gaussian Splatting, the shape of a 3D Gaussian is defined as

\[ \mathcal{G}(\mathbf{x}, \mathbf{R}, \mathbf{S}) = \exp\!\left(-\tfrac{1}{2}\,\mathbf{x}^{\top}\,\Sigma^{-1}\,\mathbf{x}\right), \]

where the covariance is parameterized as \(\Sigma = \mathbf{R}\,\mathbf{S}\,\mathbf{S}^{\top}\,\mathbf{R}^{\top}\), with rotation matrix \(\mathbf{R}\) and scaling matrix \(\mathbf{S}\). Given \(N\) ordered Gaussians overlapping a pixel, the accumulated color is

\[ \mathbf{C}_{N} = \sum_{n=1}^{N} \mathbf{c}_{n}\,\mathbf{\alpha}_{n} \prod_{j=1}^{n-1}\!\left(1 - \mathbf{\alpha}_{j}\right). \]

To represent holographic radiance fields, we extend each Gaussian primitive as

\[ k = (\mathbf{c}_n,\; \mathbf{x}_n,\; \mathbf{R}_n,\; \mathbf{S}_n,\; \mathbf{\alpha}_n,\; \underline{\mathbf{\varphi}_n},\; \underline{\mathbf{\rho}_n}), \]

where \(\mathbf{\varphi}_n \in \mathbb{R}^3\) denotes the intrinsic phase across wavelengths, and \(\mathbf{\rho}_n \in \mathbb{R}^{L}\) denotes the assignment weights over \(L\) depth planes. Under this formulation, \(\mathbf{c}_n\) represents wave amplitude rather than color. The complex field of the projected Gaussian \(U_n\) is

\[ U_n = \mathbf{c}_n\, \mathcal{G}_{n}^{\text{proj}}\, \exp(j\,\mathbf{\varphi}_n). \]

Forward Recording and Inverse Propagation¶

The complex field on depth plane \(\Pi_l\) is given by

\[ U_{\Pi_{l}} = \sum_{n=1}^{N} \mathbf{\rho}_{n,l}\, U_n\, \mathbf{\alpha}_{n} \prod_{j=1}^{n-1} \left(1 - \mathbf{\alpha}_{j}\right) \mathbf{\rho}_{j,l}. \]

Here, \(\alpha_n\) modulates the emitted wave amplitude, while the transmittance term \(\prod_{j=1}^{n-1}(1-\alpha_j)\) accounts for attenuation from preceding Gaussians. Each populated depth plane is then propagated to the hologram plane \(P\) using the band-limited Angular Spectrum Method (ASM), which we term Forward Recording:

\[ U_{\Pi_{l} \to P} = \mathcal{F}^{-1}\!\left\{H_{Z_l}(f_x, f_y) \cdot \mathcal{F}\{U_{\Pi_{l}}\}\right\}, \]

where \(Z_l\) is the distance from depth plane \(\Pi_l\) to the hologram plane \(P\), and \(H_z\) is the band-limited ASM transfer function

\[ H_{z}(f_x, f_y) = \begin{cases} \exp\!\left(j2\pi z\sqrt{\tfrac{1}{\lambda^2} - (f_x^2 + f_y^2)}\right), & \text{if } f_x^2 + f_y^2 \leq \tfrac{1}{\lambda^2}, \\ 0, & \text{otherwise.} \end{cases} \]

The final hologram field is obtained by summing contributions from all depth planes:

\[ P = \sum_{l=1}^{L} U_{\Pi_{l} \to P}. \]

We then perform Inverse Propagation from \(P\) back to each depth plane and compute the reconstructed intensity as \(I_l = |U_{P \to \Pi_l}|^2\).

Scene Geometry-Aware Amplitude and Phase¶

Unlike prior methods, the per-Gaussian phase \(\mathbf{\varphi}_n\) is modeled as an intrinsic phase reference in the scene coordinate frame, rather than a view-dependent quantity. It remains fixed across viewpoints, while viewpoint-dependent interference emerges through projection and propagation. For two viewpoints with projection matrices \(\mathbf{J}_1, \mathbf{W}_1\) and \(\mathbf{J}_2, \mathbf{W}_2\), the projected complex fields are

\[ \begin{aligned} U_n^{(1)} &= \mathbf{c}_n\, \mathcal{G}_{n}^{\text{proj}}(\mathbf{J}_1, \mathbf{W}_1)\, \exp(j\,\mathbf{\varphi}_n), \\ U_n^{(2)} &= \mathbf{c}_n\, \mathcal{G}_{n}^{\text{proj}}(\mathbf{J}_2, \mathbf{W}_2)\, \exp(j\,\mathbf{\varphi}_n). \end{aligned} \]

This Lagrangian formulation avoids the costly per-frequency accumulation used in Eulerian methods and decomposes computation into two GPU-efficient stages:

Tile-based complex-valued rasterization: extending the 3DGS rasterizer to accumulate complex-valued Gaussians directly in image space, with rasterization cost scaling as \(O(N_{\text{primitives}})\).
FFT-based layer propagation: aggregating Gaussians onto \(L\) depth planes and propagating them to the hologram plane with 2D FFTs, yielding a propagation cost of \(O(L \times N_{\text{res}} \log N_{\text{res}})\), independent of the number of primitives.

Results¶

Inference Speed¶

Our method achieves 30x-10,000x speedup compared to existing Gaussian-based CGH methods while maintaining view consistency.

Method	Number of Gaussians	Inference Time
Our Method	200K	10 ms
Our Method	5M	69 ms
3DGS + U-Net	200K	8 ms
3DGS + U-Net	5M	29 ms
GWS (Fast)	200K	> 40 s
GWS (Exact)	200K	> 13 min

Experimental Captures¶

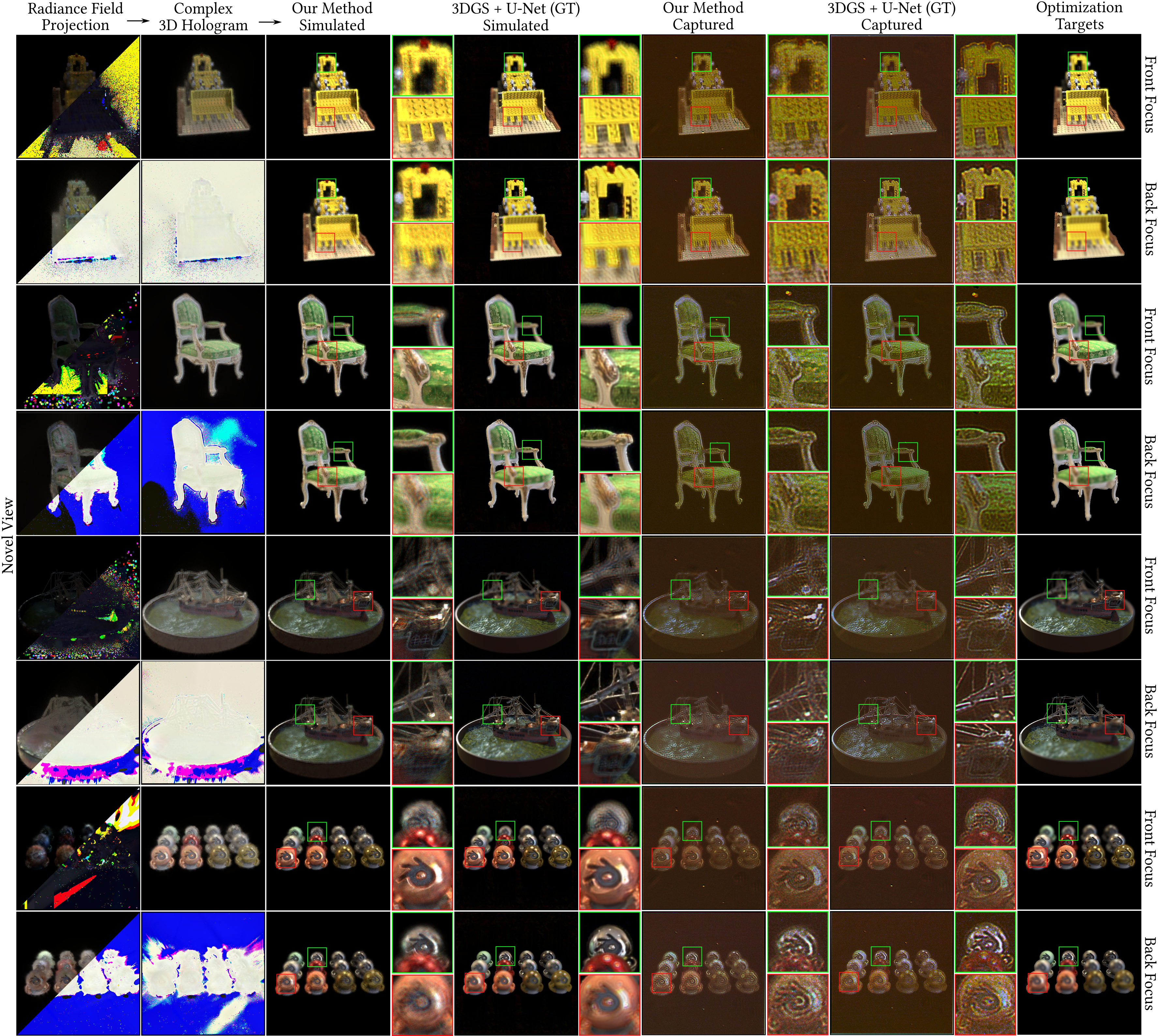

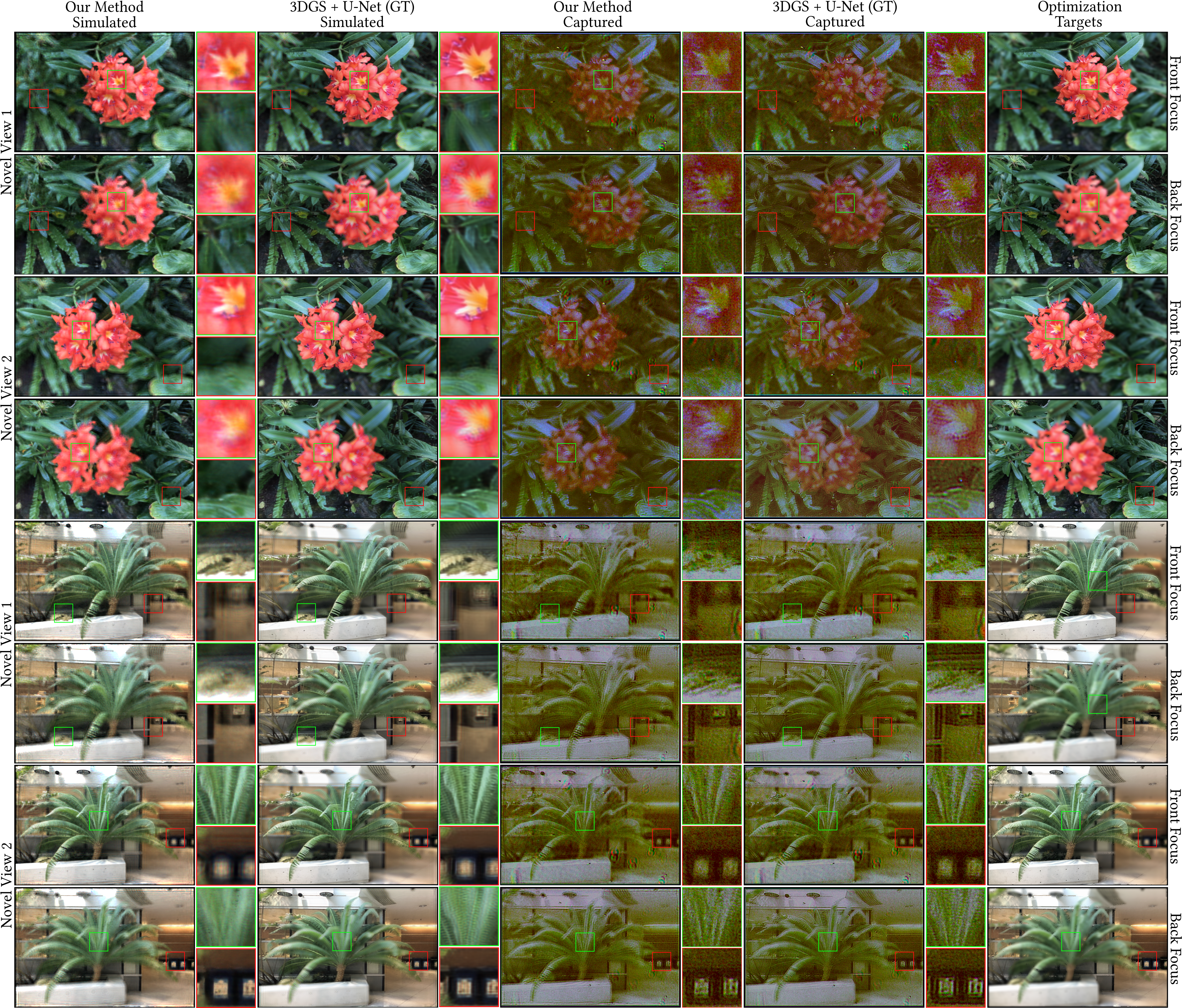

We validate our results on a holographic display prototype using a phase-only Spatial Light Modulator (Jasper JD7714, 2400×4094 pixels, 3.74 μm pitch) with three laser wavelengths (639, 532, and 473 nm). Below we show novel-view comparisons between our method and the 3DGS + U-Net baseline on multiple scenes from the NeRF Synthetic and LLFF datasets, including both simulated results and experimentally captured results.

Natural Defocus Blur¶

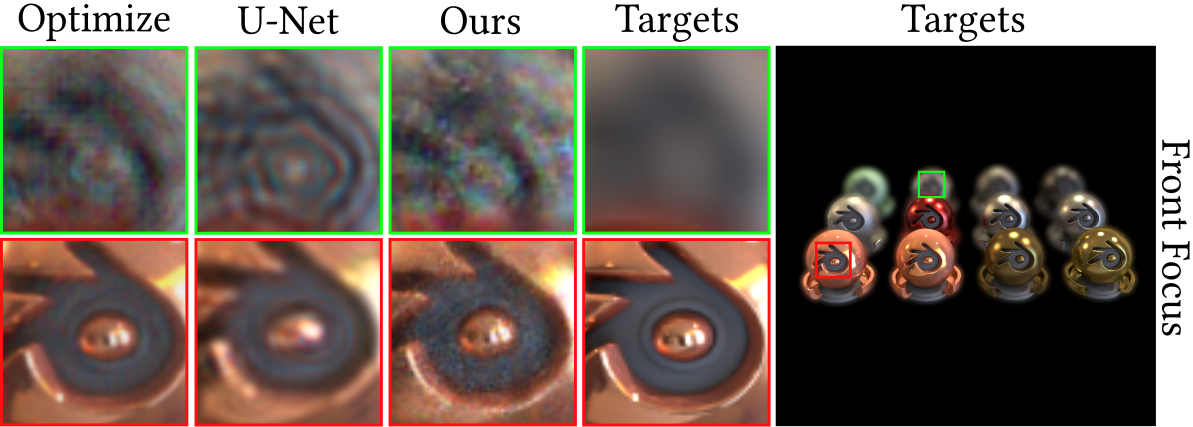

Our method generates perceptually more plausible defocus blur compared to existing learned CGH methods, which often suffer from structured fringing effects. The defocus blur produced by ours resembles that of optimization-based methods.
